Lafert Metric MotorsPM Motors - Stand-alone
Standard Features
- Wide power output 0,37 – 30 kW
- Compact range in IEC frames: 71 – 90 – 112 – 132
- Voltage: 3 phase 230 – 480 V
- Speed range up to 6000 RPM
- Same mechanical selection possibilities (B3, B5 etc) as in a standardized IEC range
- The HPS range is designed for different rare earth materials to secure stable cost base
- Lafert offers a strong competence level to support customization
- The HPS range offers the full flexibility regarding motor speed
- The HPS range can be controlled by most standard Drives
PM Motors - Integral Drive
Standard Features
- Wide power output 0.37 – 30 kW
- Compact range in IEC frames: 71- 90 – 112 -132
- Voltage: 1 phase and 3 phase 230 – 480 V
- Speed range up to 6000 RPM
- Same mechanical selection possibilities (B3, B5 etc) as in a standardized IEC range
- Same foot print with drive integrated as a similar size AC motor
- Designed for different rare earth materials to secure stable cost base
- Strong competence level to support customization
- Full flexibility regarding motor speed
- Having the drive integrated save electrical panel space and cables

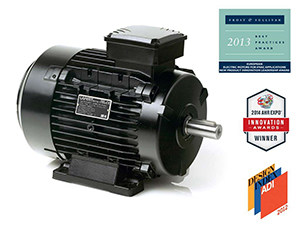

Premium Efficiency, IE3/EISA
Standard Features
- Frame sizes: 90 to 160
- Power: 1.1kW to 22kW
- Poles: 2, 4, 6*
- Frequency: 50 and 60Hz
- Construction: aluminium design
- Detachable feet, simple foot to flange conversion
- Four positions cable entry
- IP 55 protection
- Ease of maintenance
- Clean modern lines with RAL 9005 finish
Optional Features
- cURus Certification
- UL Energy Verified Certification
- Encoder mounting
- Force ventilation
- Customized shafts of flanges
High Efficiency, IE2/cURus
Standard Features
- Frame sizes: 71 to 315
- Power: 0.75kW to 200kW
- Poles: 2,4 and 6*
- Frequency: 50/60Hz and 60Hz
- Construction:
71 to 160 aluminium design
180 to 315** cast iron design - Detachable feet up to 280 frame, simple foot to flange conversion
- Thermal protection 160 frame and up
- Four positions cable entry
- IP 55 protection
- Ease of maintenance
- Clean modern lines with RAL 9005 finish
Optional Features
- cURus Energy Certification
- Increased output (progressive motor) for certain frames
- Encoder mounting
- Force ventilation
- Customized shafts of flanges (up to 160 frame)
Pole-changing
Standard Features
- Frames: 63 to 160
- Output: 0.07 to 18.5 kW
- Frequency: 50 Hz
- Poles: 4/2, 8/4, 4/6 and 6/8
– Aluminum Design
Optional Features
- cURus Certification
- Customized flanges and special shafts
High Torque - DC Brake
Standard Features
- Frame sizes: 63 to 160
- Power: 0.12 to 22kW
- Poles: 2, 4, 6, 8 (two speed on demand)
- Insulation class F
- Degree of protection:
IP54 (for 63 to 112);
IP55 (for 132 and 160);
IP56 (on request)
- Efficiency level IE1 or IE2
- Braking torque: 1.8 to 250Nm
- Spring-applied electromagnetic brake without power supply with step-adjustable braking torque
- Brake discs with double braking surface, fitted with friction materials without asbestos
- Power supply with rectifier (always via the terminal board): 230V 50/60Hz, others on request

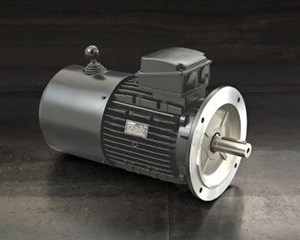

High Torque - AC Brake
Standard Features
- Frame sizes: 63 to 160
- Power: 0.12 to 22kW
- Poles: 2, 4, 6, 8 (two speed on request)
- Insulation class F
- Degree of protection:
IP54 for 63 to 112;
IP55 for 132 and 160
(IP56 on demand) - Efficiency level IE1 or IE2
- C-Face with and without feet
- Braking torque: 1.8 to 250Nm
- Spring-applied electromagnetic brake without power supply with step-adjustable braking torque
- Brake discs with double braking surface, fitted with friction materials without asbestos
- Brake power supply:
230/400V 50Hz on dedicated terminal boar
Low Torque - DC Brake
Standard Features
- Frame sizes: 63 to 160
- Power: 0.12 to 22kW
- Poles: 2, 4, 6, 8 (double speed on request)
- Insulation class F
- Protection class IP54 (IP55 on request)
- Efficiency level IE1 or IE2
- Braking torque: 3 to 30Nm
- Power supply with rectifier (via the terminal board): 230V 50/60Hz
- Spring-applied electromagnetic brake without power supply with fixed braking torque
- Single braking surface, manufactured with friction materials without asbestos
Single Phase Running Capacitor
Standard Features
- Frames: 56 to 100
- Output: 0.09 to 2.2 kW
- Frequency: 50 Hz
- Poles: 2, 4 and 6
- Aluminium design
Optional Features
- cURus certification
- CSA certification
- Dual voltage design (115/230 V)
- Customized flanges and special shafts
Single Phase Starting/Running Capacitor
Standard Features
- Frames: 63 to 100
- Output: 0.12 to 2.2 kW
- Frequency: 50 Hz
- Poles: 2, 4 and 6
- Aluminium design
Optional Features
- cURus certification
- CSA certification
- Dual voltage design (115/230 V)
- Customized flanges and special shaft

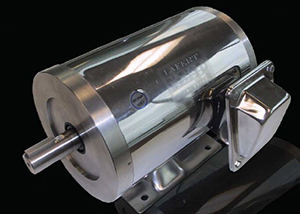

Stainless Steel Design Motors
- Perfect for the food processing, chemical, packaging and pharmaceutical industries
- Available in IEC 63 to 112 frame sizes, foot mounted or in B14, and B5 mounting
- In 2, 4 and 6 pole 230/460V or 575V 60 Hz
- TENV and TEFC enclosures, CSA Safety Approvals
- 300 series Stainless Steel construction for all exterior parts
- IP56 & IP67 Washdown protected, “Corrosion” resistant, fitted with double gaskets in conduit box
- Drain holes at 90° positions
- Paint free housing
- Laser etched nameplate on frame body
- Sanitary, Durable
